ViGiL3D++: Scaling Diverse Language Generation for 3D Visual Grounding

Developing robust models for 3D visual grounding (3DVG), the localization of entities in a 3D scene described in natural language, is important for enabling agents to correspond language descriptions with objects in the physical world. However, the lack of diverse descriptions at scale prevents models from generalizing beyond simple linguistic patterns. Recent such attempts lack diversity in the constraint types and language used to ground objects. Captioning methods cannot precisely contrast objects, which is important for visual grounding. We therefore propose ViGiL3D++, a scalable, scene-agnostic method that generates diverse visual grounding prompts by combining constraint sampling on scene graphs with the language generation of LLMs. We demonstrate its value through higher diversity over existing scaled datasets and as a training set, with improved model performance over several 3DVG benchmarks.

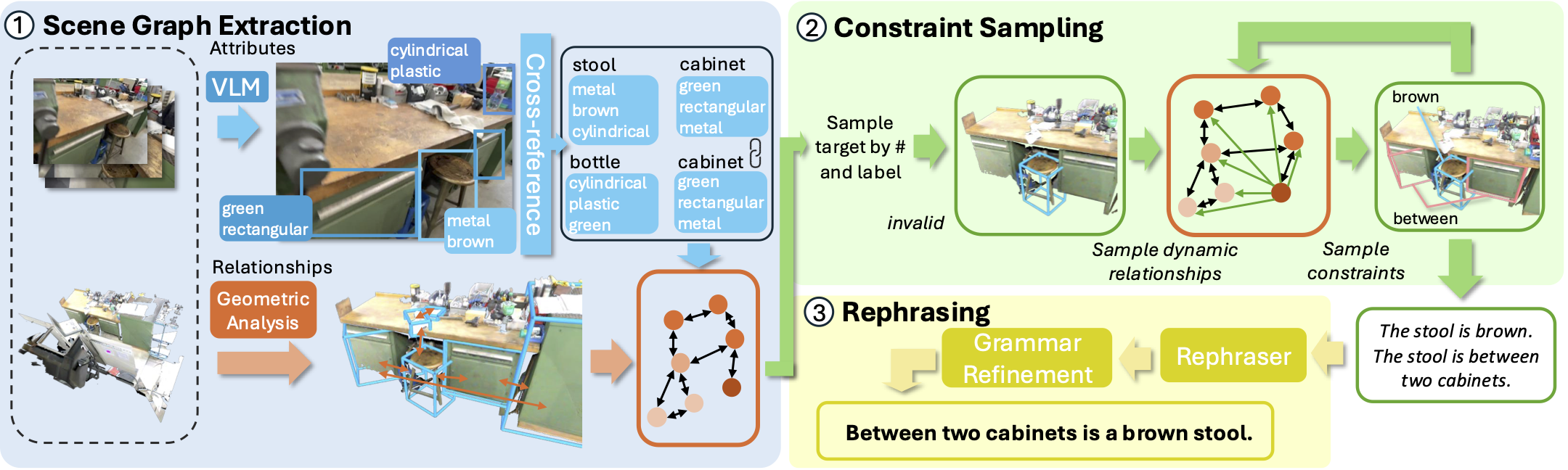

Dataset Pipeline

We design a fully automated pipeline that generates a diverse set of visual grounding prompts that describe target objects in the scene given a point cloud and RGB images of a scene. Our method improves on existing solutions by 1) enforcing consistency in attribute assignment through cross-referencing, 2) enabling diverse attribute and relationship types through more comprehensive scene graph extraction and constraint sampling, and 3) improving linguistic variation using in-context rephrasing.

To achieve this, we frame our problem as constraint synthesis: for a scene and a set of target objects, we sample a set of constraints whoes only satisfying solution is the set of target objects. We break this down into several steps. First, we extract a cross-referencing scene graph by parsing attributes using a VLM from multi-view images of each object and relationships through geometric analysis. Secondly, for each prompt, we sample targets conditioned on the prompt type (zero-, single-, or multi-target) and label. Constraints are iteratively sampled from the scene graph until the targets are appropriately constrained. Lastly, we use an LLM to rephrase the templated constraints into a natural language description.

Scene Graph Extraction. To construct a pool of attributes and relationships for constraint sampling, we extract a scene graph from the input scene using a VLM and geometric methods. Initializing objects from a segmentation of the scene, we use a VLM to parse attributes of objects from multi-view images, cross-referencing objects for similarity to ensure that objects with identical appearance are assigned the same attributes. We then use layout estimation to predict room boundaries and extract relationships within each room between objects through geometric analysis augmented by VLMs.

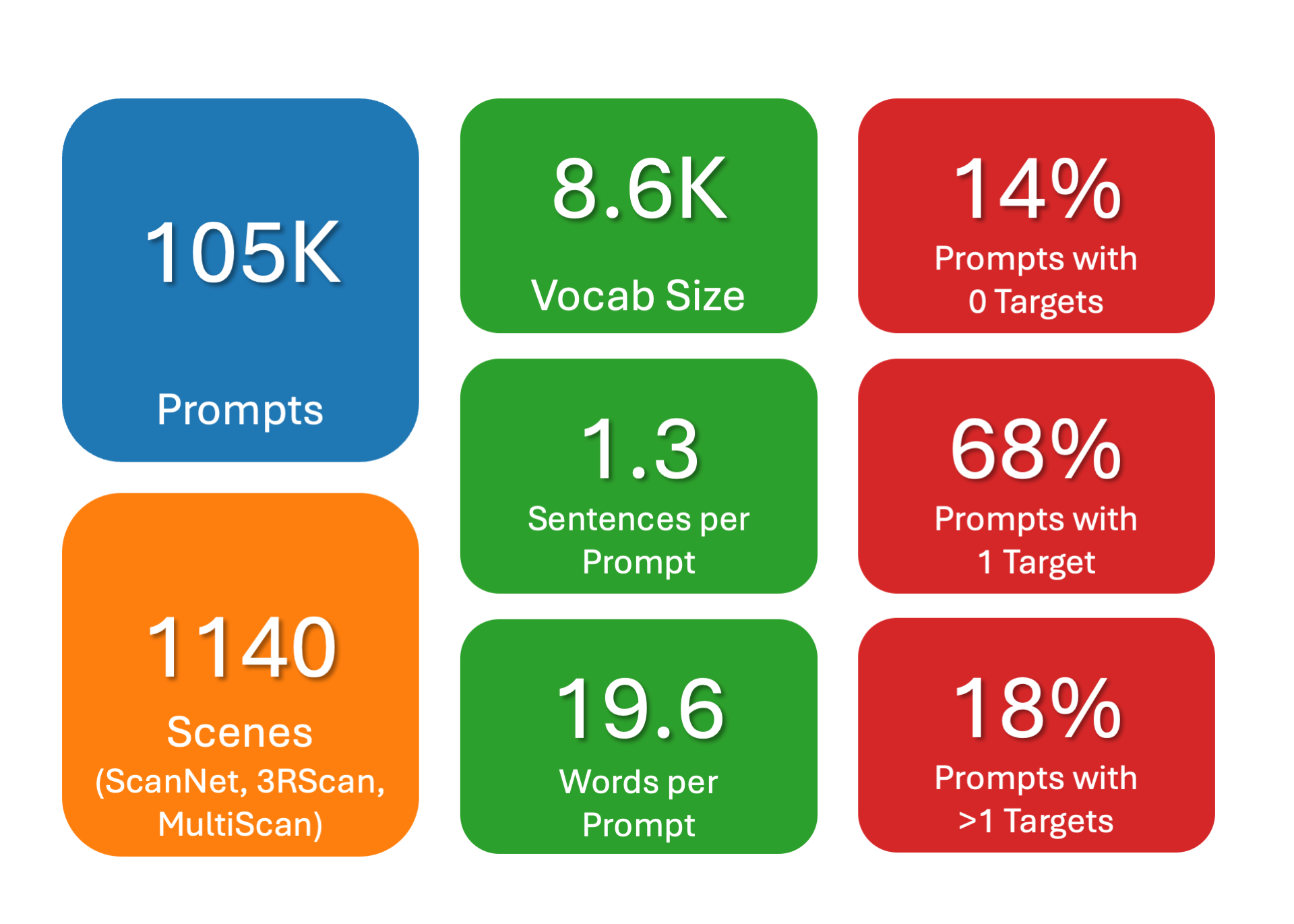

Dataset

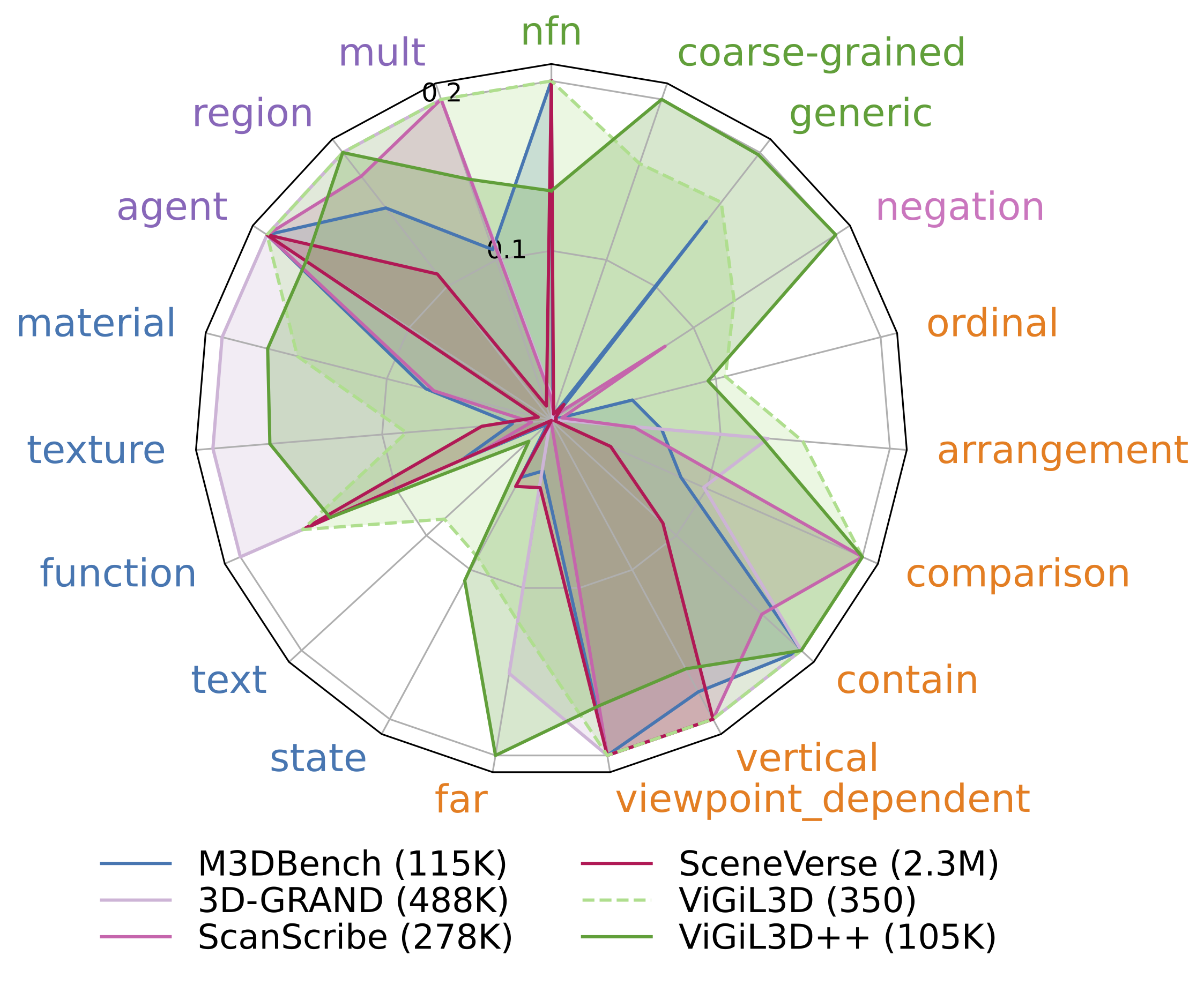

We showcase the capabilities of ViGiL3D++ for training by generating a large 3DVG dataset from a range of scene datasets (ScanNet, 3RScan, and MultiScan), including zero-, single-, and multi-target descriptions. We find that our dataset has comparable or higher linguistic diversity than existing scaled 3DVG datasets, representing a wider range of attribute and relationship types and linguistic patterns. Furthermore, ViGiL3D++ generates descriptions with higher validity rates than baselines (using images, captions, or scene graphs) as well as existing methods such as 3D-GRAND (Yang et al., 2024).

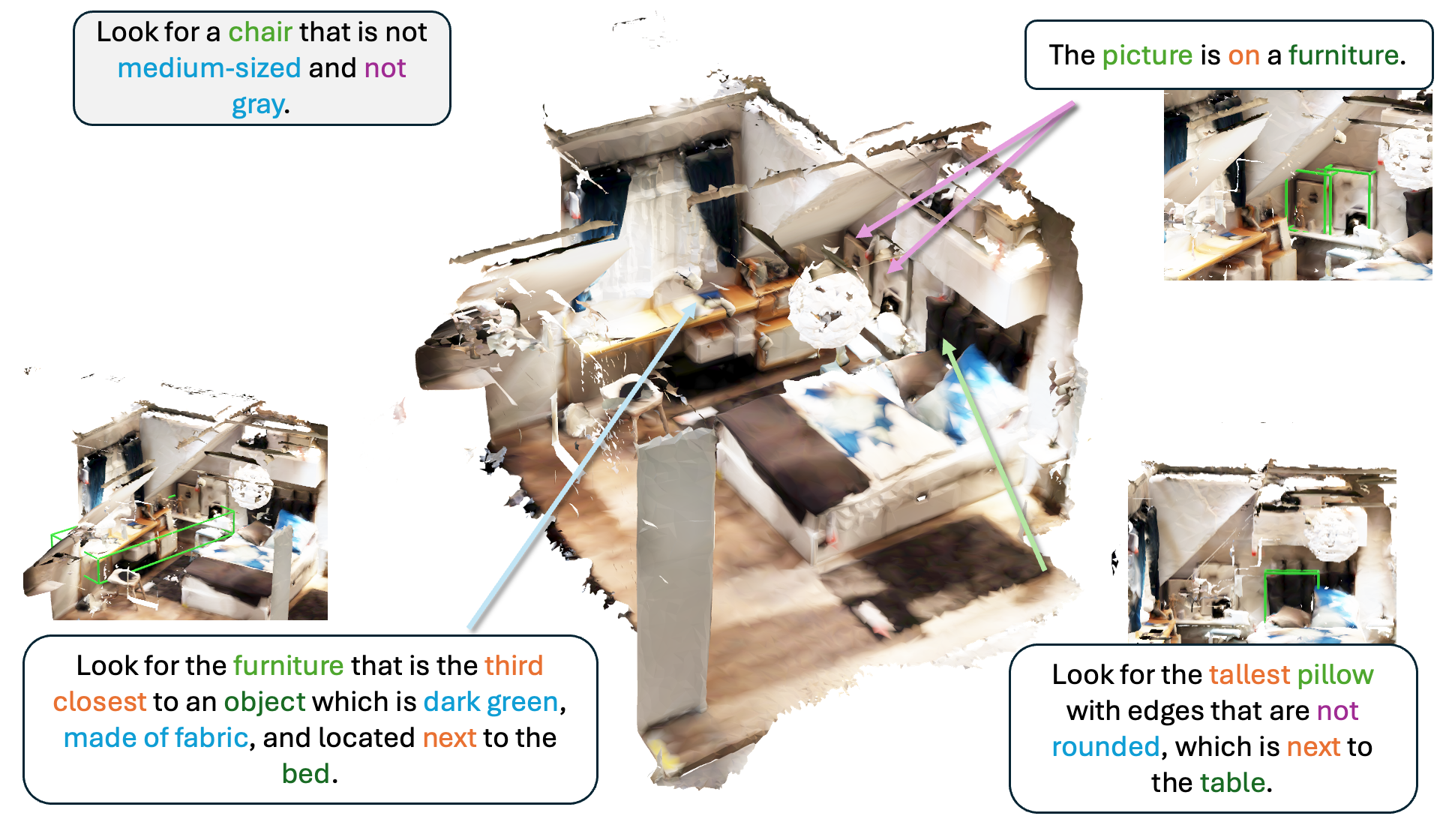

Interactive examples

Explore sample ViGiL3D++ grounding descriptions on downsampled point clouds from the validation split.

Green boxes mark target objects for the current description. Drag to orbit, scroll to zoom.

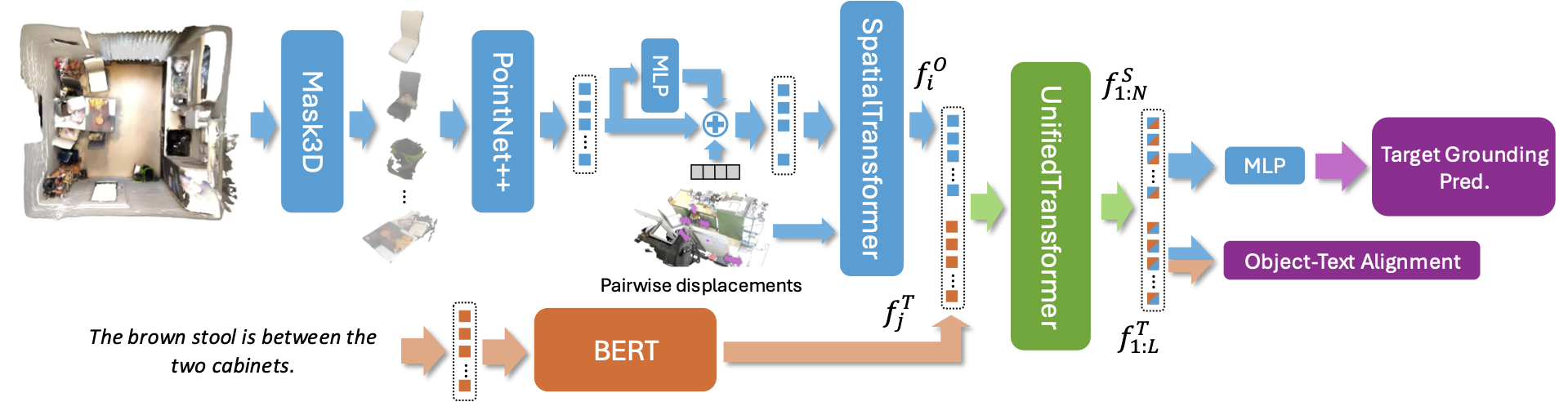

V3DM: A Model for Visual Grounding

We design V3DM with a similar architecture to 3D-VisTA (Zhu et al., 2023), making minor improvements to enable variable-target predictions and use dense annotations in an auxiliary loss.

Open-vocabulary. We generalize the PointNet++ features to support arbitrary learned semantic embeddings.
Dense alignment. We use the dense annotations from ViGiL3D++ to construct losses against predictictions of the anchor objects and dense alignments of text tokens to objects.
Zero- and multi-target predictions. We extend the model to handle prompts with no target objects or multiple target objects.

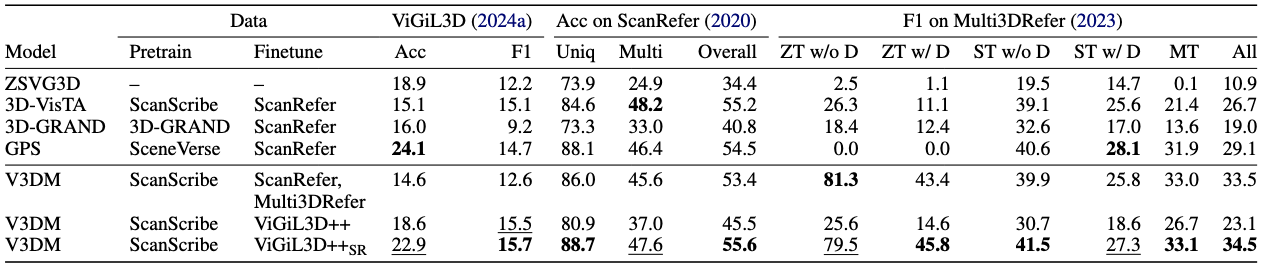

Results

Training with ViGiL3D++ improves performance relative to several state-of-the-art works with similar model architectures over benchmarks including ScanRefer, Multi3DRefer, and ViGiL3D (Wang et al., 2025), which includes more diverse language prompts.

Model Predictions Viewer

Compare model predictions on the same scene descriptions.

Ground truth: green | Prediction: blue (correct) / red (incorrect)

Insights

It is important to consider the diversity of language prompts that are being scaled up for training.
VLMs are useful in spatial reasoning tasks, but conditioning them for diverse generation of spatial attributes and relationships and phrasing is difficult.
Extracting a scene graph representation in 3D enforces spatial consistency that is lacking in direct image-based methods.
Encoding human spatial relationships in scene graphs for constraint sampling is challenging, given the context required (e.g. object A being far from object B can depend on other objects in the scene and the scene size).

BibTeX


      @article{wang2026scaling,
          author={Wang, Austin T. and Yang, Dongchen and Chang, Angel X.},
          title={Scaling Diverse Language Generation for 3D Visual Grounding},
          journal={arXiv preprint},
          year={2026},
          eprint={},
          archivePrefix={arXiv},
          primaryClass={cs.AI},
          doi={},
      }

Acknowledgements

This work was funded in part by a CIFAR AI Chair and the NSERC Discovery Grant, and enabled by support from the Digital Research Alliance of Canada and a CFI/BCKDF JELF. We thank Hou In Ivan Tam, Hou In Derek Pun, Denys Iliash, Weikun Peng, Tristan Engst, and Xingguang Yan for the helpful discussions and feedback.
